Boostinator Hub Adapter

The Boostinator hub adapter by Wolf Tooth Components – Boost for everyone
Wolf Tooth Components has developed the Boostinator hub adapter for anyone who would like to benefit from the advantages of Boost 15 x 110 mm front and 12 x 148 mm rear axle standards: more tyre clearance for wide tyres and rims and stiffer, stronger wheels. Until now you needed not only a new frame and fork, but also new wheels. But now there is the Boostinator. When combined with compatible 15 x 100 mm or 12 x 142 mm hubs, you can fit your existing wheels into Boost frames and forks. The position of the disc brake and drivetrain remain unchanged and only a small re-truing of the spokes is necessary.

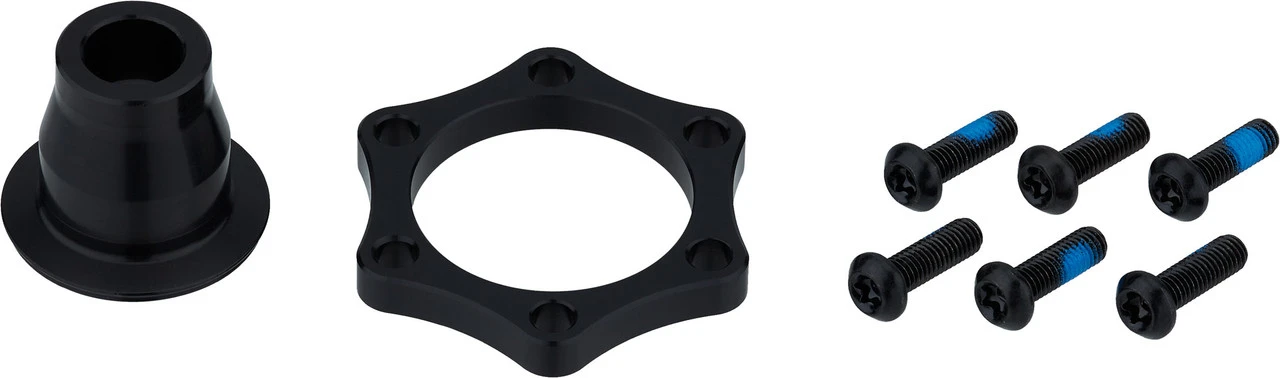

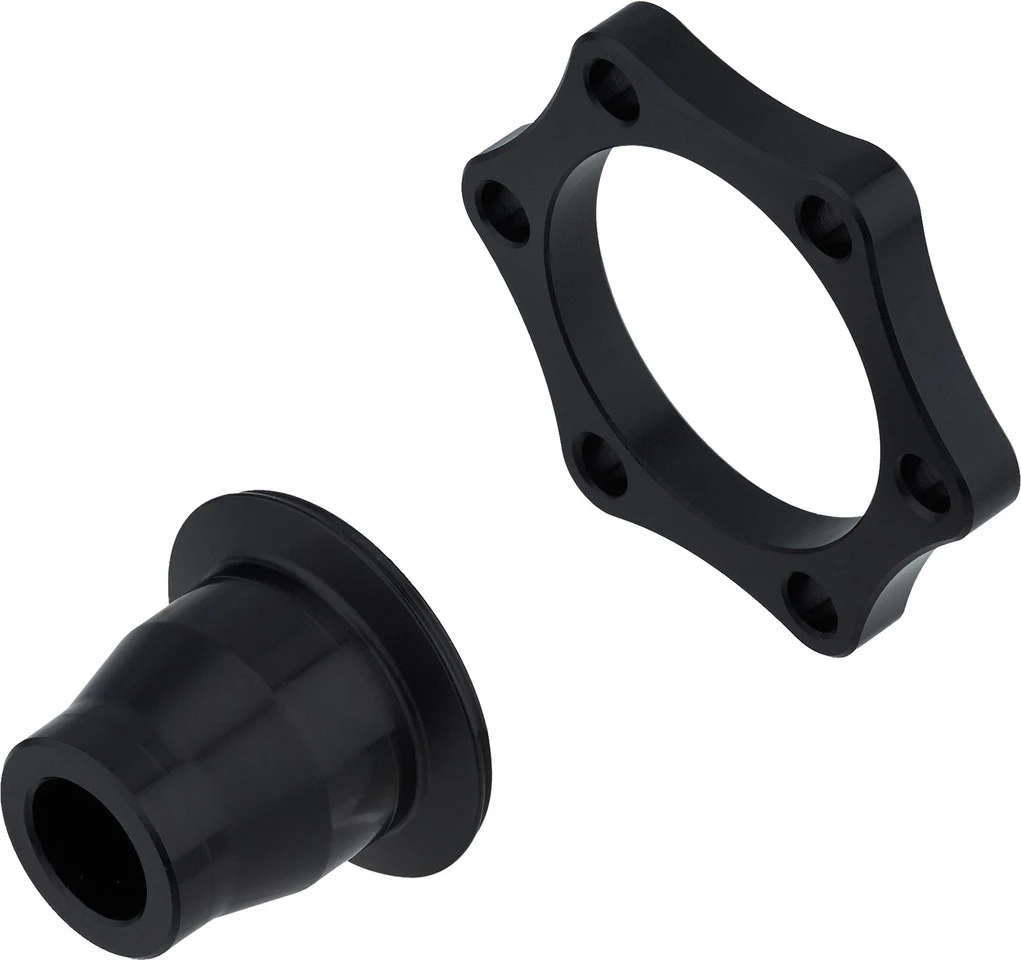

A Boostinator Kit consists of a special end cap and – if it is an rear kit – a precision-made rotor spacer with 6 high-strength bolts. In accordance with the Boost specifications, the brake rotor and cassette are moved further outwards so that the brake and shifter continue to function as usual.
Technical Information:Material:aluminium (6061)Compatibility:front kits are compatible with 6-bolt and some center lock modelsrear kits are only compatible with 6-bolt (center-lock brake rotors cannot be adjusted accordingly)rear kits not approved for brake rotors larger than 183 mmBoostinator not recommended for non-symmetric lacing (e.g. 2:1)front and rear re-truing requiredFeatures:converts 100 mm front and 142 mm rear hubs into 110 mm and 148 mm hubs respectivelyfront kits contain a single end cap (no rotor spacer required), rear kits additionally contain a rotor spacer and 10.9 stainless steel bolts (40% stronger than conventional 8.8 hardware)CNC-machined, anodisedMade in the USAModels:Type 1:
Model Designation:DF2Base Model:front 15 x 100 mmConvertible to:front 15 x 110 mm BoostCompatibility:DT Swiss 240s front hubs from 2011, DT Swiss XR 1501 Spline front wheels up to 2016, DT Swiss XM 1501 Spline One front wheels up to 2016, DT Swiss EX 1501 Spline One front wheels up to 2016, not for DT 1500 as of 2017 (generally applies: outer diameter left must be approx. 29.7 mm, 28 mm not compatible)Manufacturer Number:BSTDF2
Type 2:
Model Designation:DF20Base Model:front 15 x 100 mmConvertible to:front 15 x 110 mm BoostCompatibility:DT Swiss 240s Oversize front hubs (convertible to 20 mm)Manufacturer Number:BSTDF20
Type 3:
Model Designation:DF3Base Model:front 15 x 100 mmConvertible to:front 15 x 110 mm BoostCompatibility:DT Swiss 350 and 370 front hubs, DT Swiss X 1900 Spline front wheels, DT Swiss X 1700 Spline Two front wheels, DT Swiss M 1900 Spline front wheels, DT Swiss M 1700 Spline Two front wheels, DT Swiss E 1900 Spline front wheels, DT Swiss E 1700 Spline Two front wheelsManufacturer Number:BSTDF3
Type 4:
Model Designation:HFBase Model:front 15 x 100 mmConvertible to:front 15 x 110 mm BoostCompatibility:Hope Pro 2 EVO and Pro 4 front hubs, not for Pro 2 Non-EVOManufacturer Number:BSTHF
Type 5:
Model Designation:DRBase Model:rear 12 x 142 mmConvertible to:rear 12 x 148 mm BoostCompatibility:DT Swiss Star Ratchet (240 and 350) rear hubs, not for 180 and 190 hubs (Center Lock), DT Swiss XR 1501 Spline One rear wheels, DT Swiss XM 1501 Spline One rear wheels, DT Swiss X 1700 Spline Two rear wheels, DT Swiss M 1700 Spline Two rear wheels, DT Swiss FR 1950 Classic rear wheels, DT Swiss EX 1501 Spline One rear wheels up to 2016, DT Swiss E 1700 Spline Two rear wheels, other wheels with DT Star Ratchet like Roval (Specialized), Giant, Syncros (Scott)Manufacturer Number:BSTDR
Type 6: sold-out
Model Designation:rear wheelBase Model:rear 12 x 142 mmConvertible to:rear 12 x 148 mm BoostCompatibility:Hope Pro 2 EVO and Pro 4 rear hubs, not for Pro 2 Non-EVOManufacturer Number:BSTHR
Type 7:
Model Designation:9TFBase Model:front 15 x 100 mmConvertible to:front 15 x 110 mm BoostCompatibility:Industry Nine Torch front hubsManufacturer Number:BST9TF
Type 8:
Model Designation:9TRBase Model:rear 12 x 142 mmConvertible to:rear 12 x 148 mm BoostCompatibility:Industry Nine Torch rear hubsManufacturer Number:BST9TR
Type 9: sold-out
Model Designation:WXRBase Model:rear 12 x 142 mmConvertible to:rear 12 x 148 mm BoostCompatibility:White Industries XMR Rear HubManufacturer Number:BSTWXRContents:1 x Wolf Tooth Components Boostinator end cap (front or rear)1 x Wolf Tooth Components Boostinator brake rotor spacer (only for type 5, type 6, type 8, type 9)6 x stainless steel bolt, 10.9 (only for type 5, type 6, type 8, type 9)
