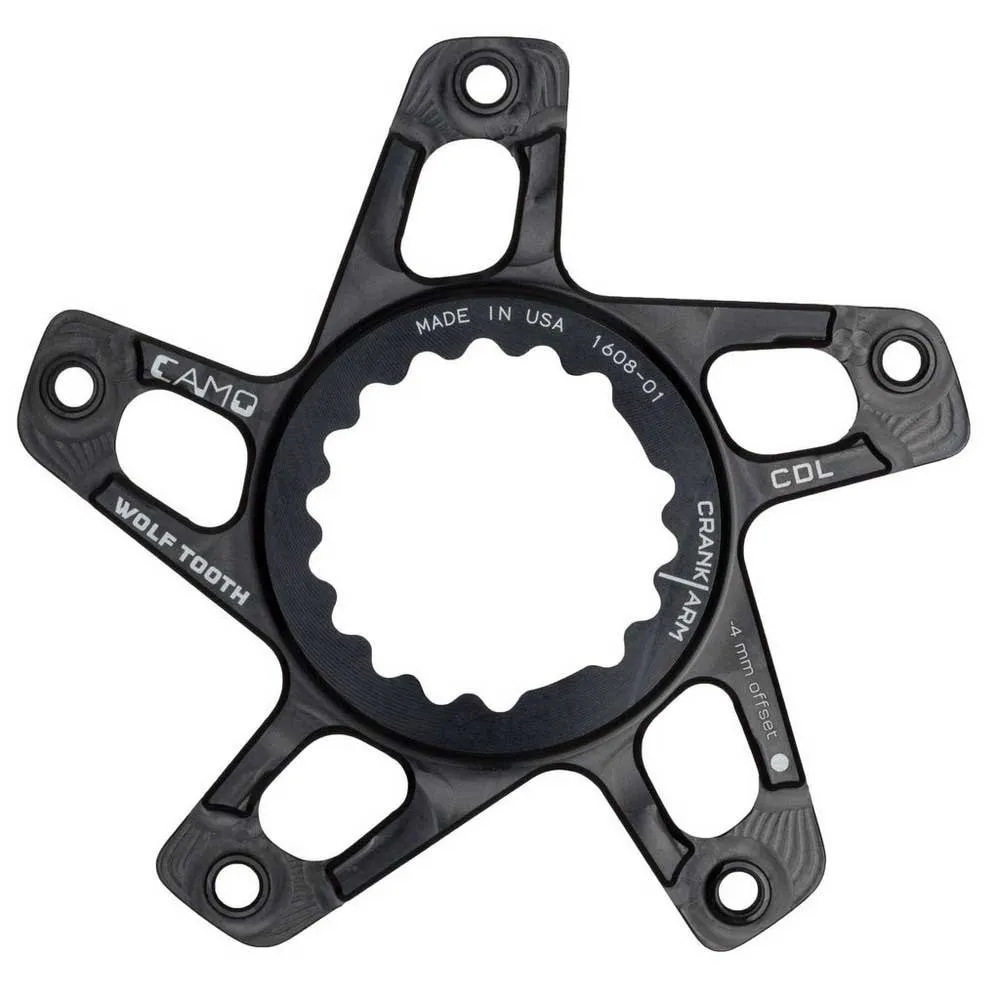

This is a spider for use with the Cannondale cranksets that have a removable spider.
The CAMO chainring system was created by Wolf Tooth engineers for Chainline And Material Optimization on direct mount style chainrings. The key advantages include:
– Perfect chainline for wear and shifting precision
– Optimal material usage for weight, stiffness, and wear
– Spend less for chainring swapping by buying only the chainring, compared to chainrings that have an integrated spider
– Swapping chainrings is very fast with only five small bolts and no nuts
– Availability, as Wolf Tooth has many direct mount options: round or oval, stainless or aluminum, for several cranksets.
– Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
Compatibility:
– This is a spider for use with the Cannondale cranksets that have a removable spider
3 different chainline options are available. The number and letter refer to the mm offset and direction from the mounting face to the centerline of the teeth:
– M9 (minus 9mm – standard dish towards the frame)
– For use on standard (non-Ai offset) mountain bikes
– FSA direct mount cranksets using boost chainline are compatible with Camo M9 (minus 9mm) offset spider when using the Wolf Tooth 2.5mm FSA spacer available separately.
– CAMO mounting bolts can be purchased separately, but all the CAMO spiders come with stainless steel bolts if you don´t order them.
– All Camo Spiders are not compatible with Bash Guide ISCG05
Installation notes:
– You will be able to access all bolts without removing the spider
– Line up the little dot on the ring with the dot on the spider. Don´t worry, you cannot install the ring in the wrong rotational orientation.
– Be sure the bosses on the spider ´´plug in´´ to the chainring.
– Torque bolts only to 4-5 Nm and use blue Loctite threadlock
Specifications:
– Weight: M9-32g
– Material: 7075-T6 aluminum
– Included: ED coated steel bolts included
