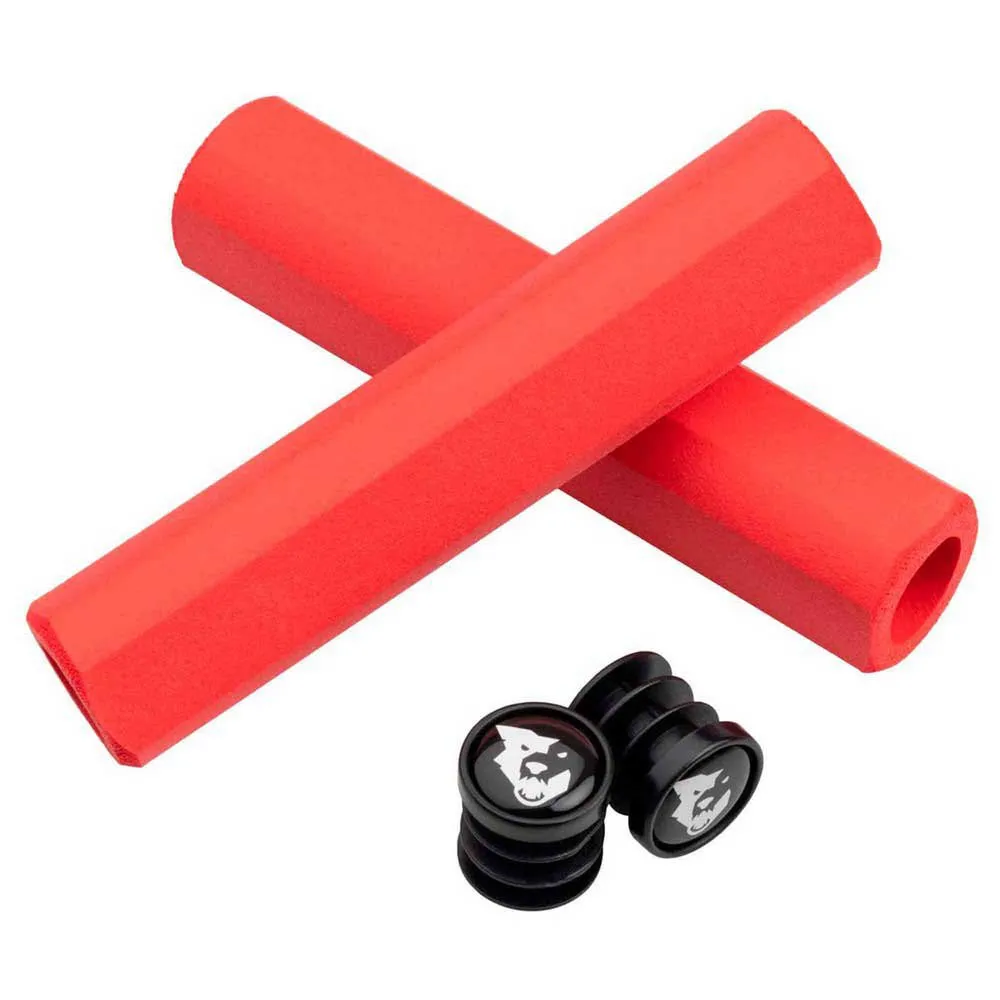

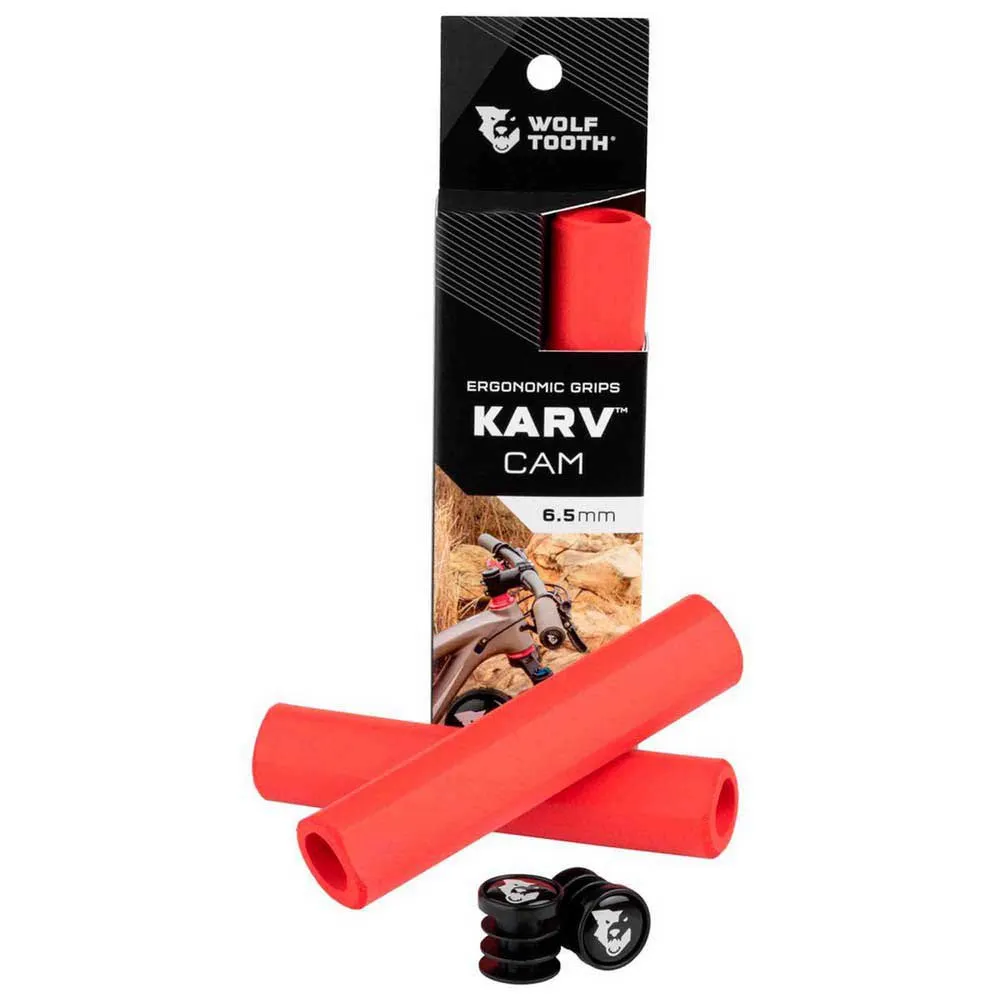

Wolf-tooth Karv Cam 6.5 Mm Grips

This is a spider for use with the SRAM cranksets that have a removable spider The CAMO chainring system was created by Wolf Tooth engineers for Chainline And Material Optimization on direct mount style chainrings.

The key advantages include:
– Perfect chainline for wear and shifting precision
– Optimal material usage for weight, stiffness, and wear
– Spend less for chainring swapping by buying only the chainring, compared to chainrings that have an integrated spider
– Swapping chainrings is very fast with only five small bolts and no nuts
– Availability, as Wolf Tooth has many direct mount options: round or oval, stainless or aluminum, for several cranksets.
– Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability

Compatibility:
– This spider is designed to work with the SRAM cranksets that have a removable spider.

The number and letter refer to the mm offset and direction from the mounting face to the centerline of the teeth:

M5 (3mm offset – Boost):
– Dished towards the frame) is for 52mm chainline for Boost bikes.
– Praxis Works mountain bike cranks use this offset for DM-A chainrings.
– This link explaining 148mm Boost spacing will help you decide if you need the M5 or M8.

Installation notes:
– You will be able to access all bolts without removing the spider
– Line up the little dot on the ring with the dot on the spider. Don´t worry, you cannot install the ring in the wrong rotational orientation.
– Be sure the bosses on the spider ´´plug in´´ to the chainring.
– Torque bolts only to 4-5 Nm and use blue Loctite threadlocker

Specifications:

– Weight: M5- 28g
– Material: 7075-T6 aluminum
– Included: ED coated steel bolts included
